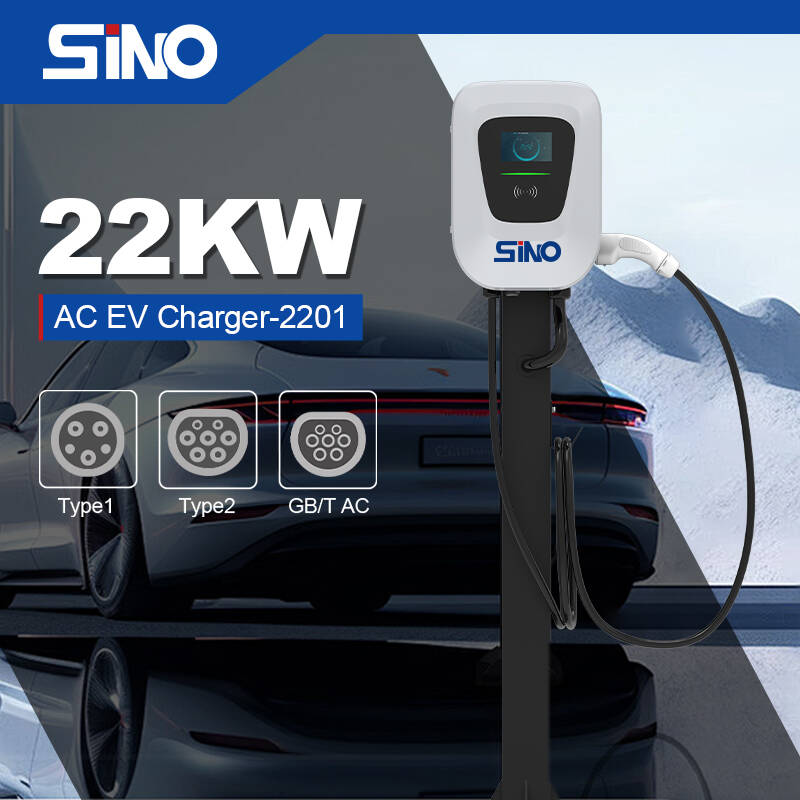

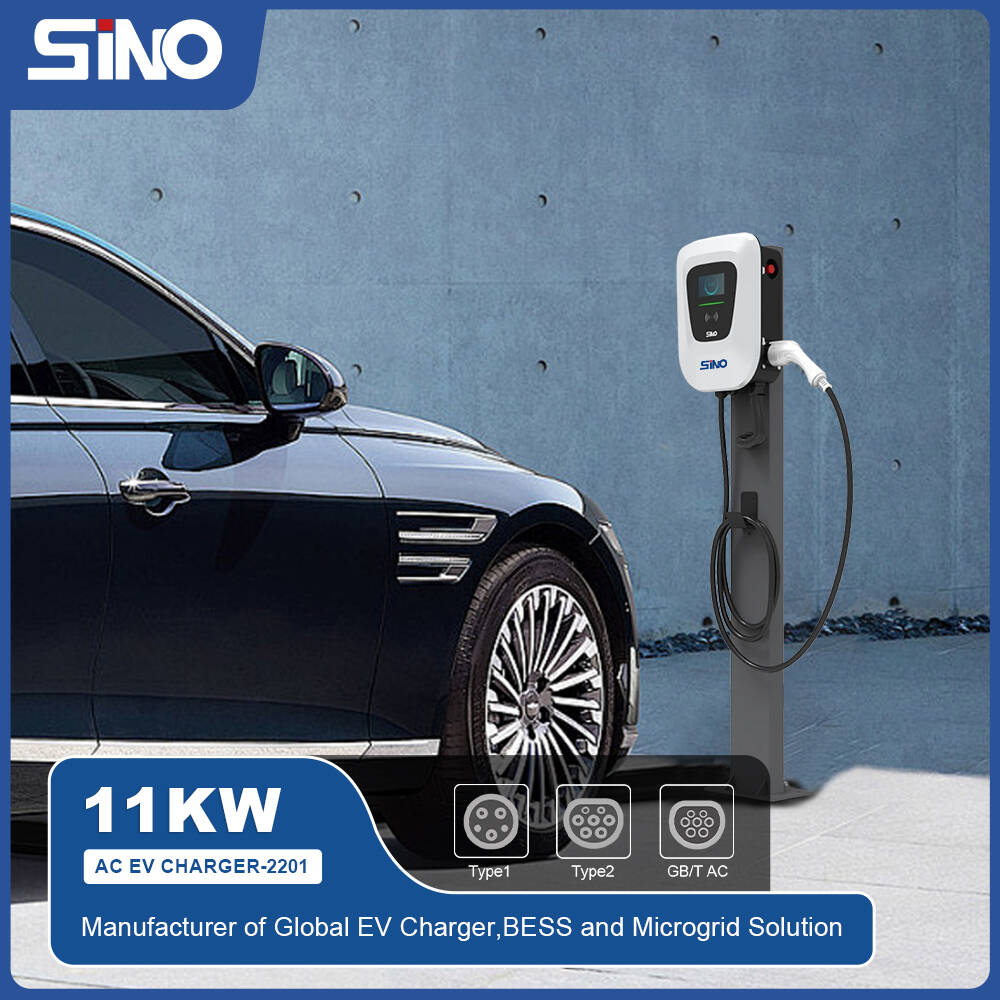

Business AC EV Charger PEVC2201 from 3kW to 22kW

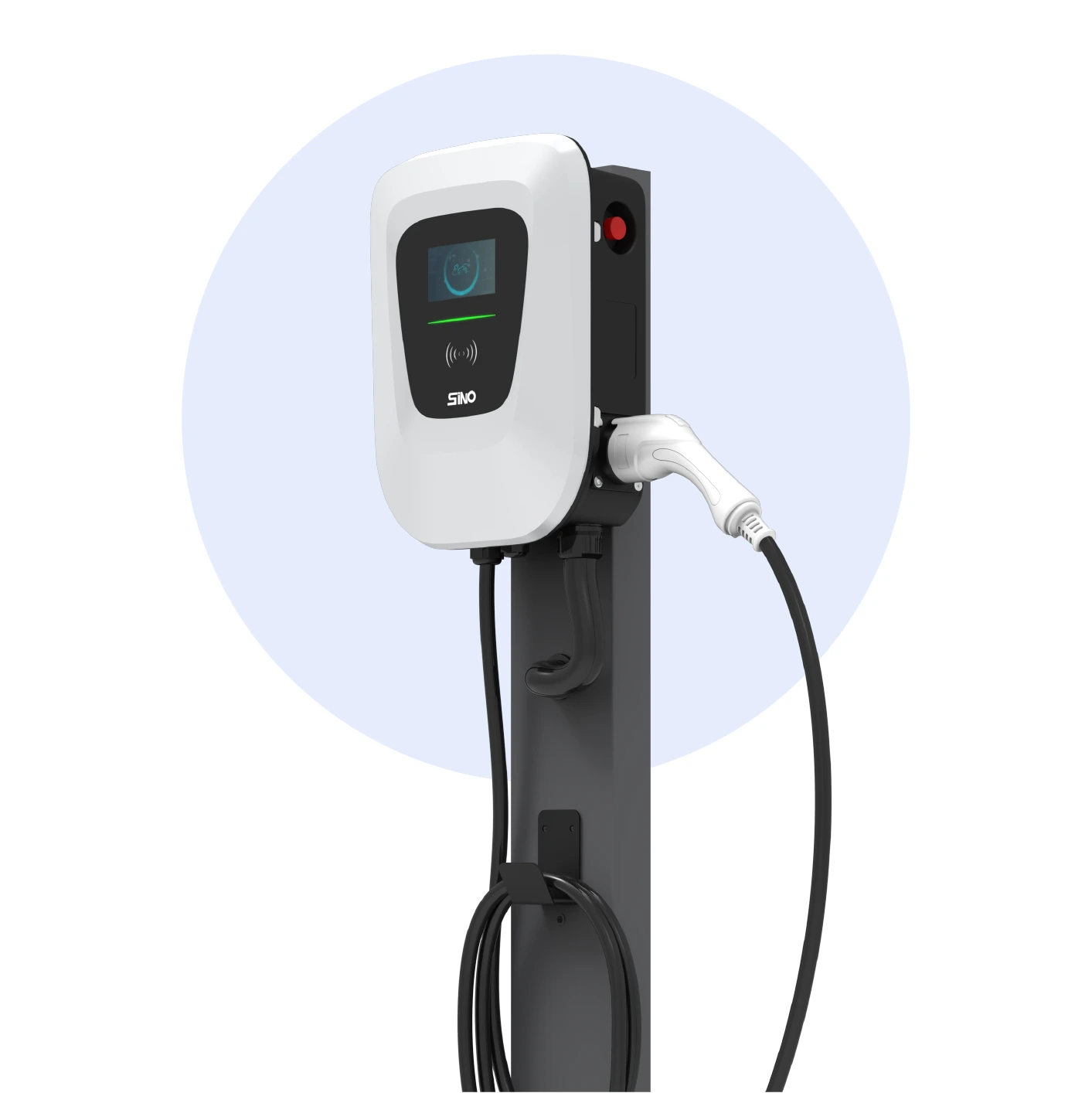

PEVC2201 is a basic wall-mount single/three-phase AC charger.It's easy to install, stable in performance, and provides complete protection function. The 4.3 inch LCD display can show the charging status, user-friendly. It supports 4G/ Ethernet/ WiFi communication

Connector

Highlights

Output Power

3kW | 7kW | 11kW | 22kW

Communication

Bluetooth / Wi-Fi / (4G / Ethernet optional)

Precision

accuracy Class 1 metering

Protection

IP55 waterproof and dustproof

LCD Display

4.3 inch color touch screen (optional)

Protection

IP55 waterproof and dustproof

Mounting

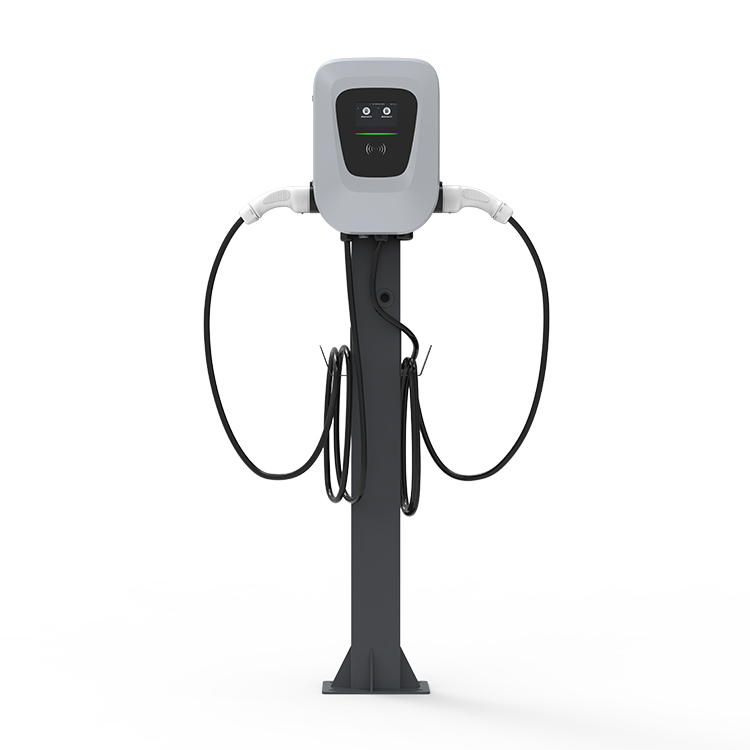

Wall-mount/Pole-mount

Charging Protocol

OCPP-1.6JSON

Voltage

230V AC+10% / 400V AC+10%

Cable

5m ( Customizable )

Certificates

CB, CE, TUV
Request a Quote Download Catalogue

Share:

Product Description

Product Specifications

Specification

Parameters / Model 1‑Phase 3‑Phase
Input parameters
Power Supply 1P + N + PE 3P + N + PE
Rated Voltage 230 VAC ± 10 % 400 VAC ± 20 %
Frequency 50 / 60 Hz
Output parameters
Number of Output Ports 1
Output Voltage 230 V 400 VAC ± 20 %
Output Current 16 A / 32 A
Output Power 3 kW / 7 kW 11 kW / 22 kW
Protection functions
Over‑ / Under‑Voltage Protection √
Over‑Current Protection √
Short‑Circuit Protection √
Lightning Protection √
Emergency Stop Protection √
Leakage Protection (RCD Type A + 6 mA DC) √
Basic parameters
Electric Energy Measurement Accuracy Class 1.0 energy meter
Display Mode 4.3‑inch LCD
Plug Cable Length 5 m
Communication Ethernet / Wi‑Fi / 4G LTE
Protocol OCPP‑1.6 (JSON)
Insulation Resistance 1000 V DC ≥ 10 MΩ
Dielectric Strength AC 2500 V ≤ 10 mA (Input / Output → Ground)

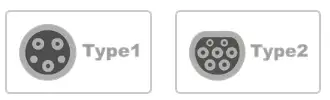

Connector Type (IEC 62196‑2) Type 2
Standards IEC 61851‑1, IEC 62196‑1/‑2
Environmental parameters
Operating Temperature ‑30 ℃ ~ +60 ℃
Storage Temperature ‑40 ℃ ~ +80 ℃
Altitude ≤ 2000 m
Humidity ≤ 95 % RH (Non‑condensing)
EMC performance
Electrostatic Discharge Immunity Level 3
RF Electromagnetic Field Immunity Level 3
Electrical Fast Transient Burst Level 4
Surge Impact Immunity Level 3
Structural parameters
Shell Color Metallic Grey
Shell Material (PC + ABS) Blend

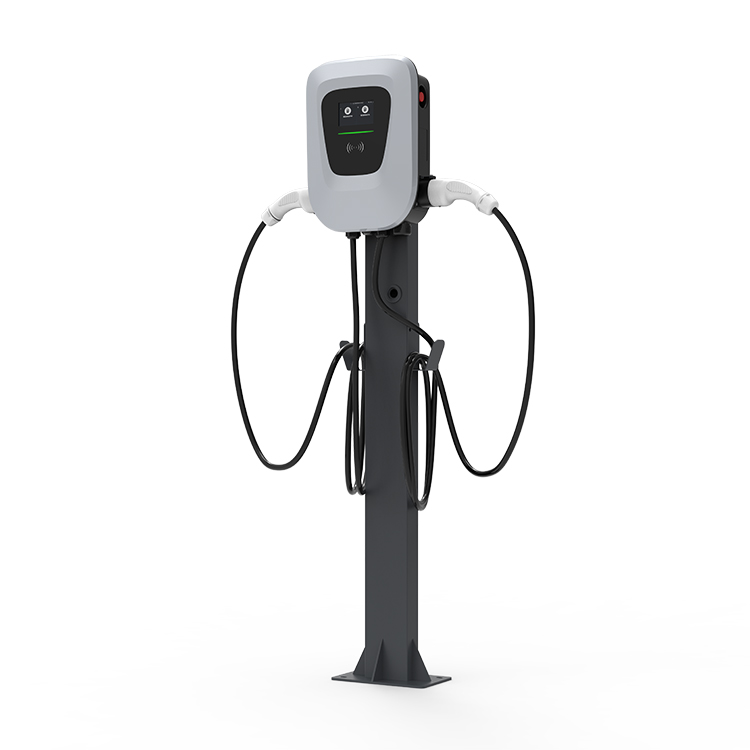

Installation Method Wall‑mount / Pole‑mount

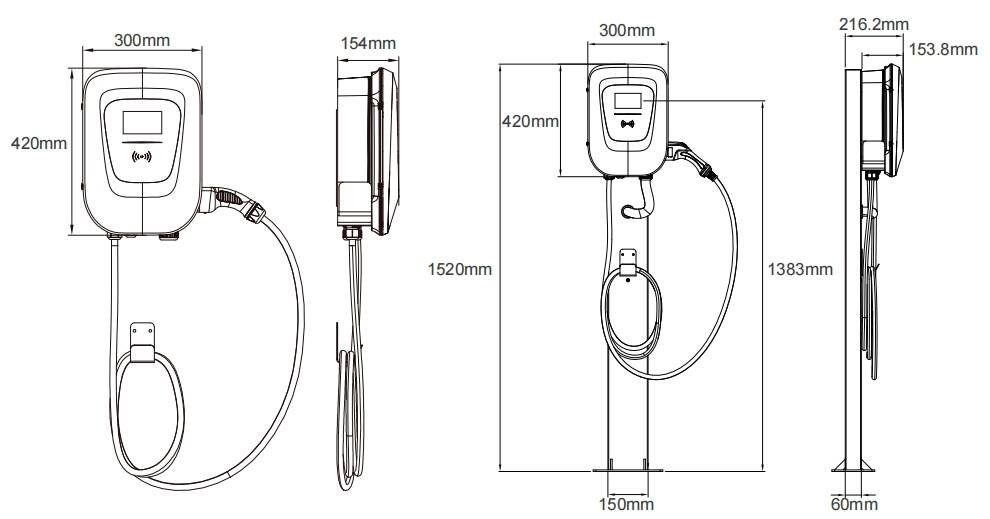

Dimensions (W × H × D) 300 × 420 × 153.8 mm
Protection Level IP55

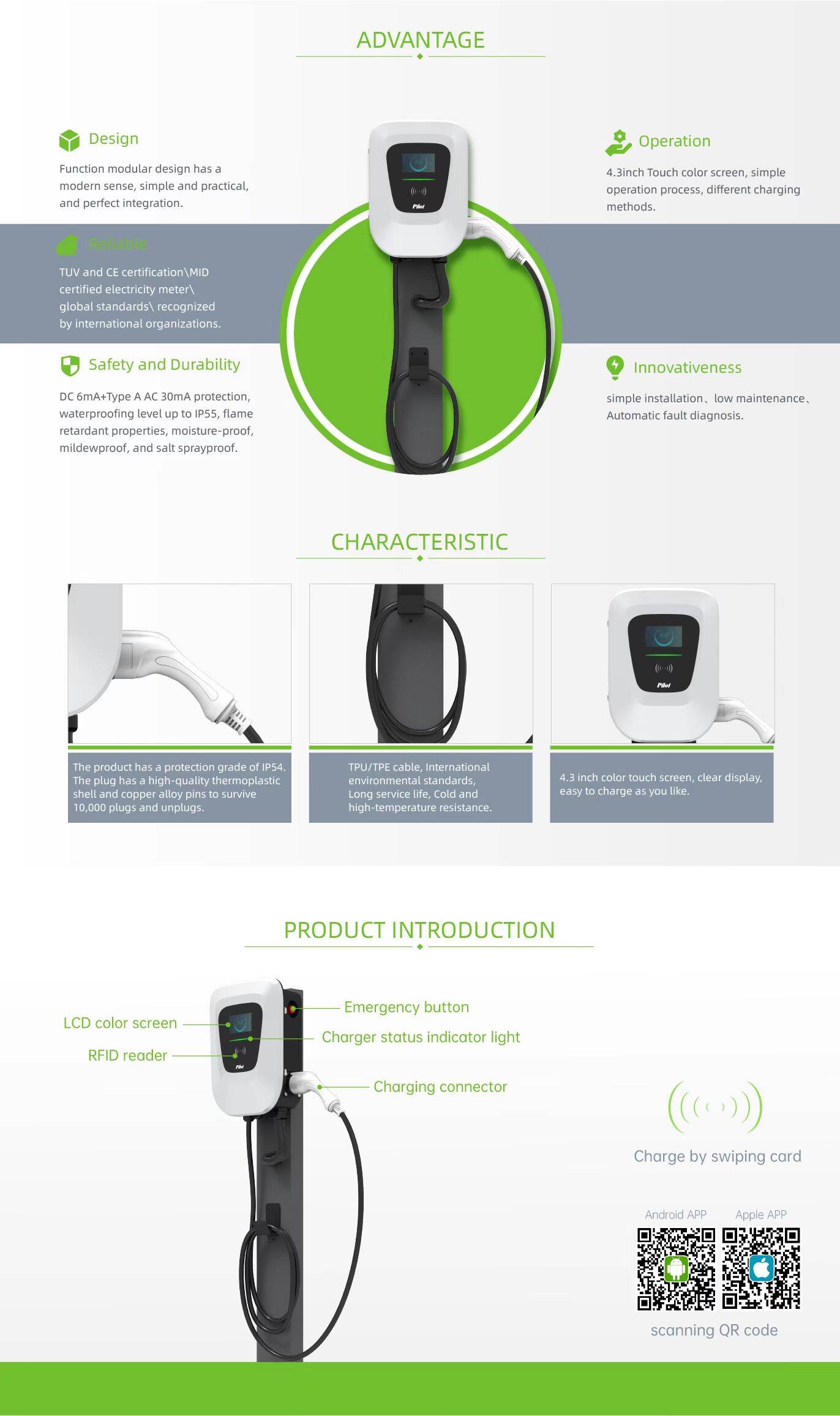

Product Features

Compact and Stylish Charging

The AC EV Charger blends into any setting with its ergonomic design and space-saving mounting options, perfect for both indoor and outdoor use.

Smart Safety Features

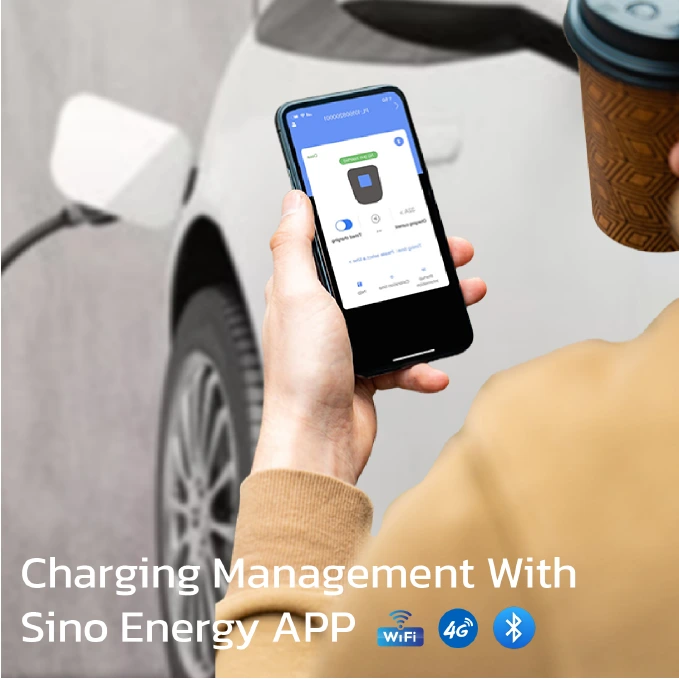

Equipped with RFID/App for secure user management, our Level 2 charger ensures a safe, efficient charge with surge protection and automatic functions.

Fast and Efficient

Power up your EV in just 3-5 hours with our 220~240V charger, offering a durable build and consistent energy output for a swift recharge.

Universal Compatibility

Designed to meet the needs of all EVs, our charger supports SAE J1772 and IEC 62196-2 standards for seamless connectivity and user experience.
